Product Winners Gallery - 2022

The ValueJet 1638UH Mark II UV-LED hybrid printer represents the next generation of UV-LED printers and is ideally-suited for the production of high-quality graphics.
Features of the ValueJet 1638UH Mark II includes staggered dual print heads with UV-LED lamps on both sides for greater
productivity, the ability to print with MUTOH UV-LED flexible (US11) or rigid (UH21) inks and multi-layer capability. The VJ-1638UH can be paired with MUTOH’s GREENGUARD Gold certified US11 UV LED ink, suitable for use in sensitive environments like hospitals, child care facilities and more, all while providing users a larger color gamut, outstanding durability, and improved dot gain. A Media Thickness Detection Sensor detects media automatically and media retainer guides help set the position of rigid media.

The ValueJet 1638UH Mark II UV-LED hybrid printer provides an alternative to expensive flatbeds for printing on rigid materials while providing the versatility of a hybrid for roll materials. The 1638UH Mark II is an ideal entry level hybrid for any existing or new print providers.
https://mutoh.com/product/valuejet-1638uh-2/

VJ-1638UH Mark II Hybrid printer features include:
– Flexibility to print on roll/rigid materials
– Media Thickness Detection Sensor automatically detects media thickness
– Media retainer sets position of rigid media
MUTOH UV-LED inks
– Rigid UH21
– Flexible US11

Specification:
Printing systems: Drop-on-demand Micro Piezo Inkjet Technology
Print head height: Automatic
Print head: 2 (staggered set-up)
Max print resolution: 1440x1440dpi (16 pass)
Print modes: 1440/1080/720/360dpi 6 modes+
Media width: 64”
Media capacity: - ø 5.9” dia / 2” & 3” cores /Roll media 66lbs or less
Rigid media max 33lbs or less
Max media thickness: .50 in
Max printable width: 63.6 in
UV lamp: UV LED 2 pcs
RIP software: VerteLith™, bundled with FlexiDESIGNER MUTOH Edition 21
Interface: Gigabit-Ethernet (1000BASE-T )
Power Requirements: AC 100-120V± 10%, 50/60Hz ± 1Hz
Ink Type: UV-LED Ink (flexible US11 or rigid type UH21)
Ink Set: 4 colors (C, M, Y, K), 5 colors (C, M, Y, K, Va), 6 colors (C, M, Y, K, Wh,Va)
Volume: 220ml (CMYK, Wh, Va) 500ml (White) 800ml (CMYK, Va)*
*500/800ml ink bags require optional adapter
No. of slots: 8

The MUTOH ValueJet 2638X 104” Eco-Solvent CMYKx2/CMYK LcLmLk printer, builds upon MUTOH’s made in Japan reputation and delivers superior print quality and outstanding speeds at an affordable price. This 104” wide printer produces billboards, banners, vehicle wraps and signage with ease using technologies such as Variable Dot, i² Intelligent Interweave and DropMaster. The VJ-2638X is paired with MUTOH’s GREENGUARD Gold certified MS31 Eco-Solvent ink, suitable for use in sensitive environments like hospitals, child care facilities and more, all while providing users a larger color gamut, outstanding durability, and improved dot gain.

The VJ-2638X is for the print service provider looking to step up their game. While boasting a mighty 104” print area for applications like landscape-printed 8’ banners, stickers, and vehicle graphics, this printer still comes in at an affordable entry-level cost that is sure to maximize output.
https://mutoh.com/product/valuejet-2638x/

Features
VJ-2638X printer features include:
• Staggered dual print heads.
• i2 Intelligent Interweave technology reduces banding.
• DropMaster ink dot placement technology.
• MUTOH Status Monitor (MSM) checks printer status in real time.
• Multi-stage heater system for faster drying time.
• Heavy Duty 220lb motorized feed and takeup unit.
Universal Printer – Can be ordered with Eco-Solvent or Dye-Sub ink configuration

Specification:
Printing systems: Drop-on-demand Micro Piezo Inkjet Technology
Print head height: Three level adjustment: - Low 1.5mm, Mid. 2.5mm, High 4.0mm
Print heads: 2
Max print resolution: 1440x1440dpi
Print modes: 1440/1080/720/540/360dpi | 29 modes
Max Media width: 104 inches
Media capacity: 5.9” dia / 2” & 3” cores /Roll media 220lbs or less
Max media thickness: Low 0.3mm, Mid. 1.3mm, High 2.8mm
Max printable width: 104 inches
Height adjustment: Manual
RIP software: VerteLith™, bundled with FlexiDESIGNER MUTOH Edition 21
Interface: Gigabit-Ethernet (1000BASE-T )
Power Requirements: AC 110-120V± 10%, 50/60Hz ± 1Hz
Ink Type: MS31 Ink Eco-Solvent
Ink Set: CMYKx2, CYMK LcLmLk
Volume: 220ml/440ml cartridges/ 1L bags with optional adapters
No. of slots: 8

The XpertJet 1642WR Pro 64” is a high-speed dye-sublimation inkjet printer with a new platform that inherits the properties of the XpertJet series. The XPJ-1642WR Pro features new extra-wide MUTOH AccuFine print heads with best-in-class dot placement accuracy, enabling high print speeds and quality.
MUTOH’s original DH21 dye-sublimation transfer ink provides optimum media transfer, achieving high density colors with less ink consumption. Fast ink-drying times enables printing on thinner and lighter transfer papers, while excellent jetting and color stability support prolonged print times. MUTOH DH21 ink is available in a CYMK configuration in 1,000ml or 2,200ml capacity ink bags.
The XPJ-1642WR Pro delivers high-quality graphics onto a wide range of materials such as trade show graphics, flags, banners, custom interior designs, apparel, sports uniforms and more.

The XPJ-1642WR Pro is a fantastic entry-level dye-sublimation printer. The dual print heads, 64” print width, and 2.2L ink options are designed to maximize production and reduce downtime.
https://mutoh.com/product/xpertjet-1642wr-pro/

Features:
– AccuFine dual print heads.
– DropMaster2.
– Feed Master.
– Media Tracker.
– Nozzle Area Select.
– DH21 dye-sublimation ink.
Optional features:
– Heavy-duty 220lb take-up system.

Specification:
Print Resolution Max: 1200 dpi
MUTOH AccuFine Print Heads: 2 staggered
Print Method: On-demand piezo drive system
Head Height Four-level adjustment of: Low 1: 1.5mm, Low 2: 2.0mm, Mid: 2.5mm, High: 4.0mm
Media - Max width: 64 in
Max thickness: 0.04~1.0mm | 0.0015-0.039in
Media diameter and weight: 7.9” or less |core - 2 inches or 3 inches | 66lbs or less
Max Print Width: 63.6 in
Max Print Length: 4,921 ft
Interface: Gb-Ethernet (1000BASE-T)
RIP Software: FlexiDYESUB MUTOH Edition
Ink Type: DH21 Dye Sublimation Ink
Ink Set: 4 colors (C, M, Y, K)
Capacity: 1000 ml | 2200 ml ink bags

The XpertJet 661UF UV-LED flatbed printer includes a larger printable surface area, updated touchscreen panel, improved LED lamp and more. The MUTOH XPJ-661UF allows for layered printing to create fine textured prints and Braille, all of which will instantly add value to any print. Tie that in with MUTOH’s Local Dimming Control Technology, and you now have the ability to add glossy finishes easily in one pass. MUTOH’s exclusive training tool, the StartRight™ Kit, is included with the XPJ-661UF, and features Project Application Guides for the printer, including lessons, video instruction, sample output and blanks. These materials offer users the opportunity to quickly get their printers up and running and add creative, textured signage capabilities to their shops. The XPJ-661UF can be paired with MUTOH’s GREENGUARD Gold certified US11 UV LED ink, suitable for use in sensitive environments like hospitals, child care facilities and more, all while providing users a larger color gamut, outstanding durability, and improved dot gain.
https://mutoh.com/product/xpertjet-661uf/

Features:
• MUTOH’s genuine VerteLith™ RIP software optimizes printer performance and is bundled with FlexiDESIGNER MUTOH Edition 21, a $2,199.00 value
• 19.02 x 23.3 inch printer
• UV-LED Local Dimming Technology
• CMYK + White and Varnish
• Print directly on a variety of substrates up to 5.91 inches thick
• Print Braille and other matte and glossy textures
• Automatic Table Height Adjustment
• Included Vacuum table

Specification:
Printing Systems: On-demand piezo drive system
Max Media Size (WxD): 20.5 in x 24.5 in
Max Media – Height: 0-5.91 in
Max Media Weight: - 13.23 lbs.
Max Printable Size (WxD): 19.02 in x 23.39 in
Height Adjustment: Automatic
Ink Type: UV-LED Ink (UH21 ink / US 11 ink)
Ink Set: 4 colors (C, M, Y, K) | 6 colors (C, M, Y, K, White, Varnish)
Capacity: 220ml ink cartridge (CMYK, White, Varnish)
No. of slots: 6
Stand Included | Working Height: 48.11 in
Print Resolution: 1440 / 1080 / 720 dpi (Total 6 modes)
Interface: Ethernet (10BASE-T / 100 BASE-TX)
Power Requirements: AC 100-120V± 10%, 50/60Hz ± 1Hz
RIP Software: VerteLith™, bundled with FlexiDESIGNER MUTOH Edition 21
Rotary Unit Optional

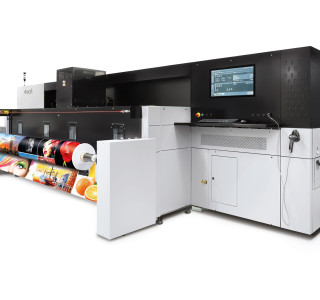

The P5 TEX iSUB is the dye-sublimation printer with an integrated inline fixation (iSUB) for a 1-step direct to fabrics printing process. The Durst iSUB contactless fixing technology ensures excellent color consistency as well as extreme sharpness of detail in images and text, also blurring or bleeding of color is eliminated. The P5 Tex is not limited to direct printing, but transfer papers can also be printed and further processed in the usual way. The P5 TEX iSUB has a print width of 130-inches / 330cm

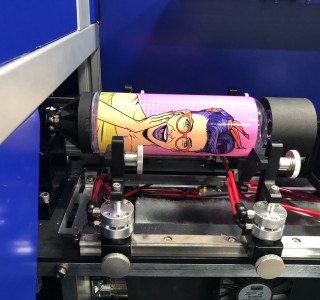

The PeriOne is our entry level, single-spindle, helical printer for cylinders and tapered objects. This printer provides ease of entry into the direct-to-object market while also providing fast and efficient performance for light production, prototyping and personalized media. Stand out features include: the ability to print directly to clear glass without the use of a barrier, automated wiping and capping of the inkjet heads, expanded size range - 6\" diameter x 18\" height, tactile effects, and faster print speeds than its nearest competitors. All LSINC printers are powered by the JetINX print engine and are built in the U.S.A.

Market Price: $225,000
Release Date: 6/28/22
Innovation: Ability to print to Clear Glass without a barrier
Efficiencies: Automated Head Wiping and Capping
