Product Winners Gallery - 2022

KODAK NEXFINITY Digital Press now offers interchangeable imaging stations. The ability to interchange the imaging stations allows printers to increase the versatility of the press. Customizing the solution to adapt to the growing needs of the customer sets the NEXFINITY Digital Press apart from the competition. Putting Opaque White dry ink into the second position greatly reduces the amount of ink needed to make colors pop on dark substrates. There is no longer a need to flood the field with white to make colors show up on dark substrates. Now you can put Opaque White dry ink only where it is needed most. Print on dark substrates with ease.

*Kodak Dry Inks are not aqueous as listed in the form submission. Kodak Dry Inks do not fall into any of the categories listed for Ink Type.

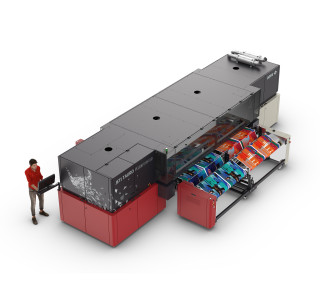

A robust hybrid UV inkjet printer with an integrated roll-to-roll system, the Jeti Tauro H2500 LED features continuous and automated feeding of rigid and flexible media. Its possibilities for high-end sign and display printing are endless – UV LED curing, prints up to 2.54 m wide, print speeds up to 275 m2/h., and countless applications with outstanding print quality in 2 different six-color modes (CMYKLcLm or CMYKLcLk) plus white or white and primer. Gloss and satin modes are available for an even larger color gamut and enhanced spot color reproduction without loss of image quality or extra ink usage.
The Jeti Tauro H2500 comes standard with a built-in light roll-to-roll for occasional, single roll printing. The master roll-to-roll option is ideal for long-run roll-to-roll jobs. The printer can also be used for roll-to-sheet – enabling fast throughput and minimal material waste.

The Jeti Tauro H3300 HS LED is the latest member of Agfa’s 3.3 m heavy-duty hybrid inkjet printer family. It offers producers of corrugated cardboard displays the option to add a layer of glossy or matt varnish – either applied to the entire surface (flood varnish) or selected spots (spot varnish). The varnish embellishes prints with a fine luxury look, while also protecting them to some extent. Just like its siblings, this hybrid high-end Jeti Tauro is geared to fast and reliable 24/7 print production of outstanding quality, featuring multiple automation options and low ink consumption.

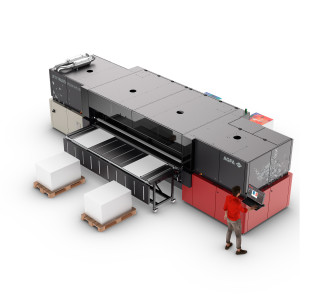

Agfa's 3.3m UV hybrid printer, the Jeti Tauro H3300 UHS LED, combines vivid six-color prints of the highest quality with ultra-high speed and cutting-edge automation for extreme productivity with low ink consumption. This heavy-duty hybrid printer is ruggedly built to easily handle extreme workloads, multiple shift operations, and 24/7 printing with max speeds of 6458 ft2/hr. The Jeti Tauro H3300 UHS LED is available in 4c (CMYK) or 6c version (CMYKLcLk) featuring 80 fast-firing Ricoh Gen 5 inkjet print heads—48 color + 12 white and/or primer. This printer can be configured with six different levels of automation to meet the rigors of high-volume production with the ultimate flexibility and versatility. Thanks to its super-sturdy build, its dynamic extended vacuum zone, advanced automatic loader, and smart media guides, the Jeti Tauro H3300 UHS is especially suited for corrugated and packaging printing.

The Jeti Tauro H3300 LED with Master Roll to Roll and the backup camera offers completely unattended double-sided printing on single or dual rolls for 24/7 operations. 2 easy-sliding cameras are attached to the left and right sides of the MRTR, for front & back printing of the same or different images in single and dual rolls. The GUI software has an intuitive implementation of this feature, automatically adding unique QR codes to the job so they can be read by the cameras and adjust the print position at the start of every job. This innovative approach identifies the exact location of the image on the front and back of the media ensuring front-to-back accuracy of +/-3mm over 300 feet. Should drift occur throughout the run, the position of the file will automatically self-correct by reading the QR codes and adjusting accordingly to maintain a high degree of accuracy. No additional software is required for this application; the feature is available on the printer GUI. Please see the attached video for a close-up view of this double-sided printing in operation.
The MRTR with backup camera is available on all 4 Tauro H3300 models. These 3.3m UV LED hybrid printers combine award-winning quality with extreme productivity and low ink consumption. In the Jeti Tauro H3300 LED printers, you will find heavy-duty, ruggedly built workhorses that easily handle extreme workloads, multiple-shift operation, and 24/7 printing.

The MUTOH PerformanceJet 2508UF 4’x8’ UV-LED Flatbed printer excels in performance, quality and value. It‘s standard staggered four print head design – field upgradable to six heads when adding white and varnish inks – provides high print speeds while the dual UV lamps on both sides of the carriage provide exceptional cure times, allowing for higher production capacity. Print media up to 4 inches thick and use the CMYK x2 or CMYKx2 plus white & varnish. The PJ-2508UF comes standard with an automatic media registration pin system with “blowback” feature for easier handling and positioning of media, a static elimination system, and an auto media thickness detector.

The MUTOH PerformanceJet 2508UF 4’x8’ UV-LED Flatbed provides an affordable alternative to more expensive flatbed printers. It’s sturdy construction and excellent output speeds provides all the features necessary for any production shop.
https://mutoh.com/product/performancejet-2508uf/

Features:
4′ x 8′ true flatbed printer
Up-gradable print head configuration
Energy-efficient UV-LED ink
CMYK + White and Varnish ink capability
Print on rigid materials up to 4 inches thick
Includes automatic front and left alignment guide pins
Four zone vacuum table
Vacuum blow back for easy media handling
Static elimination system
MUTOH Edition Flexi 19 RIP software

Specification: Print method Drop-On Demand, Piezo Drive Method Variable dot Yes
# of nozzles: 1280 (4X320 Channels / 4 heads -default)
Curing system: UV-LED Lamp
# of print heads: 4 default - field upgradeable to 6
Auto Media Thickness Detection: Included
Ink type: UV-LED
Anti Static Elimination: Included
Media Handling System: 4 Zone Vacuum Table, Auto Media Registration Pin System
RIP software: Mutoh Edition Flexi Sign & Print
Media Handling System 2: “Blow Back” Feature to easily slide media across
table.
Power requirements Main: 220 - 240 VAC, 50/60Hz +/-,1 Hz, 25A Single Phase
Print modes: 600X300 / 600X600 / 600X900 /600X1200 (dpi) *
Color options: CMYK x2 or CMYK x2, +White + Varnish
Maximum print speed / resolution: 968 sqft/hr (600X300 / 2 pass / 4 color / 4 head )
Dimensions (printer) WxDxH: 186.6" x 78.7" x 58.8"
Maximum Resolution: 600 x 1200 dpi
Maximum Print Height: 4 inches (101.6mm)
Printer weight: 2,756 lbs ( 1,250 kg)
Maximum media weight: 92.15 lbs. / sq yd. or 350lbs.
Maximum print Area: 100” X 49.2”
